Fogging Options

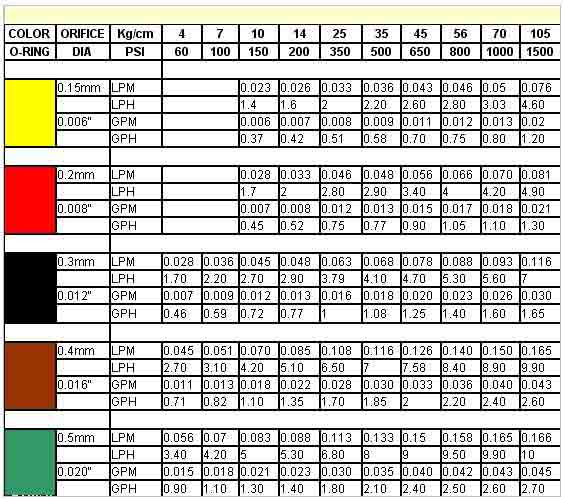

Fog Nozzles Flow Rate Chart

Fog system kits, fog nozzles, & fog pumps are available here. Fog nozzles are frequently used for evaporative cooling, mosquito misting, greenhouse humidification and more. Offering an assortment of the most popular top quality fog system components in smaller quantities for the low volume user. Larger quantity discounts are available to the high volume user. Our superior quality fog nozzles are made in the USA to very high standards!

*	Fog Nozzle flow rates tested with water under controlled laboratory conditions. Flow rates can vary due to environment, fluid viscosity and fluid density.

**	Other sizes available on request.

FOG NOZZLE CHARACTERISTICS
SPRAY ANGLE: Depending on pressure: 0.20mm 55-70deg. 0.30mm 65-75 deg. 0.40mm 80 deg. 0.50mm 80 deg.	MINIMUM PRESSURE REQUIRED: 0.20mm: 18 Kg /cm / 250 PSI+ 0.30mm: 3 Kg /cm / 45 PSI+ 0.40mm: 3 Kg /cm / 45 PSI+ 0.50mm: 3 Kg / cm / 45 PSI+
SPRAY CHARACTERISTICS: Produces a high percentage of less than 50 micron size droplets at higher pressure ranges. SPRAY PATTERN: Cone Shape	To calculate higher or lower flow rates from the table below. The following formula may be used.
